12mm momentary NO push switch with IP67 front panel sealing.
Product Information
| Product Type: Momentary Push Button Switch | Contact Material: Silver-plated copper |
| Function: OFF-(ON), Normally Open | Housing Material: Nylon or Metal |
| Circuit: SPST | Button Colors: Red, yellow, blue, green, orange, white, black, grey |
| Current Rating: 2A 250VAC / 4A 125VAC | Illuminated: Yes |
| Optional Rating: 4A 250VAC / 6A 125VAC | LED Color: Red,Blue,Green,White,Yellow |
| Mounting Hole: M12×1 | Mechanical Life: ≥200,000 cycles |
| Mounting Hole: 12mm | Electrical Life: ≥50,000 cycles |
| Protection: IP67 front-panel sealed | Operating Temperature: -25°C to +85°C |
| Terminal: solder lug | Certifications: IP67, CE, RoHS, REACH |
Product Business Terms
Minimum Order Quantity: |
Flexible MOQ is available for standard models. Custom colors, special contacts, and packaging requirements may require a specific MOQ. |
| Lead Time: | Standard models are available with regular production lead time. Delivery time depends on order quantity and customization requirements. |
Description
|
The A200 Series Momentary Push Button Switch is a compact 12mm panel mount push switch designed for low-current control circuits and simple signal control applications. This series provides OFF-(ON) momentary normally open operation, allowing the circuit to close only while the button is pressed and return automatically when released. With IP67 front panel protection, the A200 Series is suitable for control panels where the front side may be exposed to dust, moisture, or occasional water contact.
The switch features a plastic housing, round actuator design, 2.8mm solder lug terminals, and a compact mounting structure for space-limited panels. Multiple button colors are available to support different control functions or panel identification requirements. The copper silver-plated contacts provide stable electrical performance for low-current applications, while CE and RoHS compliance make the series suitable for OEM equipment, control boxes, instruments, and light-duty industrial control systems. |
Applications
The A200 Series push button switch is suitable for compact control panels, signal control devices, small electrical equipment, instruments, test equipment, and OEM control systems. Its momentary normally open function makes it a practical choice for reset, start, signal trigger, and short-time control operations where a simple and reliable push action is required. |

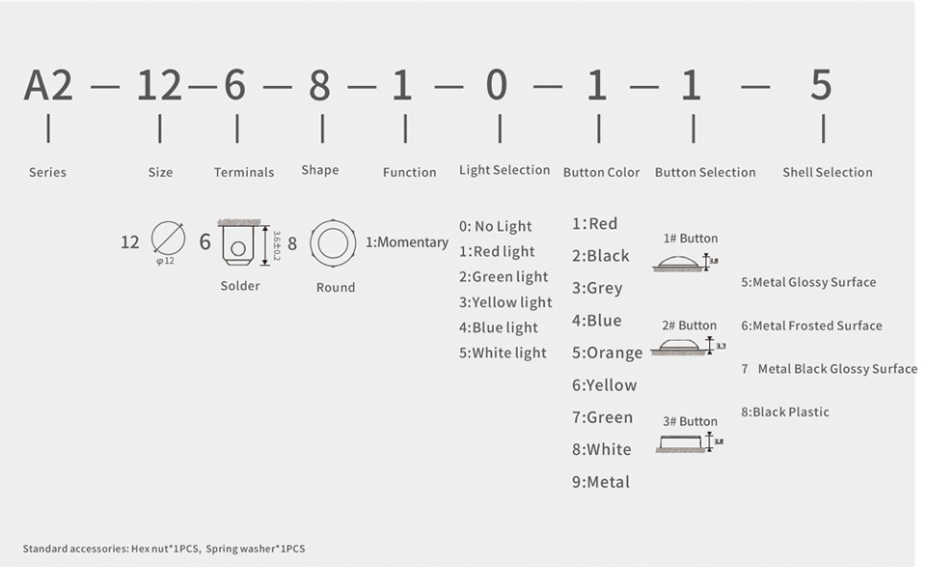

Build Your Part Number
Q: MOQ & Custom Options
A:Standard colors are available for regular orders. Custom colors or special requirements can be discussed based on order quantity.
