16mm IP67 push button switch
Product Information
| Product Series : A300 Series | Housing Material：Nylon or Metal |
| Function: OFF-(ON), Normally Open | Button Colors: Red, yellow, blue, green, orange, white, black, grey |
| Current Rating：2A 250VAC / 4A 125VAC | Illuminated:Yes |
| Optional Rating：4A 250VAC / 6A 125VAC | LED Color: Red, Blue,Green,White,Yellow |
| Mounting Hole：M16×1 | LED Voltage：2.4V |
| Mounting Hole：16mm | Mechanical Life: ≥200,000 cycles |
| Protection：IP67 front-panel sealed | Electrical Life：≥50,000 cycles |
| Terminal：Solder lug or Wire | Operating Temperature：-25°C to +85°C |
| Contact Material：Silver-plated copper | Certifications：IP67, CE, RoHS, REACH |
Product Business Terms
Sample Support: |
We support providing samples for testing and evaluation. |
| Customization: | Button color, LED color, housing material, terminal type, wire lead configuration, and LED voltage can be customized according to project requirements. |
Description
|
The A300 Series Push Button Switch is a compact 16mm panel mount push button switch designed for industrial control panels, machinery equipment, electrical devices, and OEM control systems. This series is available with nylon plastic housing or metal housing, allowing customers to choose the suitable structure according to appearance, cost, and application requirements. A300 Series supports both momentary and latching operation, and is available in illuminated and non-illuminated versions. Multiple button colors and LED colors are available for clear function identification on compact control panels. The standard LED voltage is 2.4V, and other LED operating voltages can be customized by adding the appropriate resistor. With IP67 protection, silver-plated contacts, 2A 250VAC rating, solder terminal or sealed wire lead options, A300 Series provides a flexible 16mm push button switch solution for OEM customers who need compact installation, reliable operation, and multiple configuration choices. |
Applications
The A300 Series Push Button Switches are suitable for industrial control panels, automation equipment, power supply units, instruments, special vehicles, marine panels, audio equipment, and other OEM electrical control systems. The illuminated version helps operators identify switch status more clearly, while the non-illuminated version is suitable for simple control functions. With IP67 protection, momentary and latching options, multiple button colors, LED color choices, and sealed wire lead terminals, A300 Series can be used in compact control panel designs where space, operation feel, and visual indication are important. |

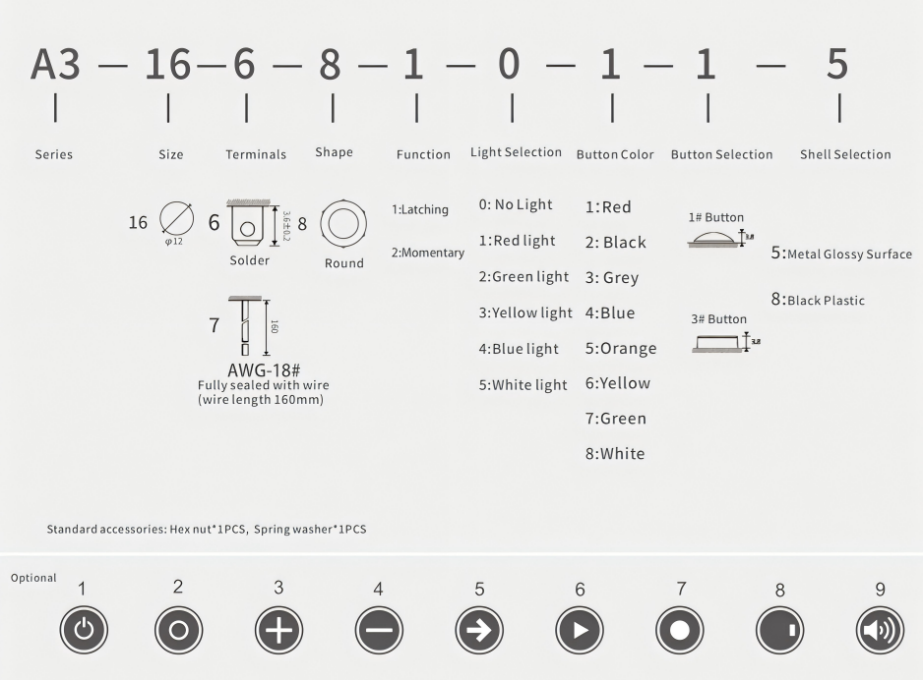

Build Your Part Number

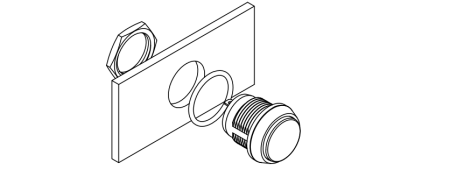

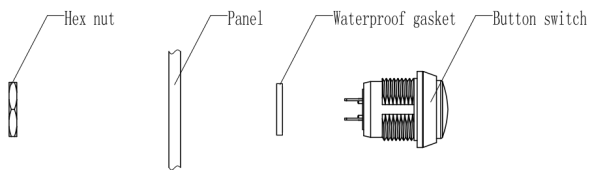

Recommended installation order
The rubber ring is installed under the panel to achieve a waterproof effect.

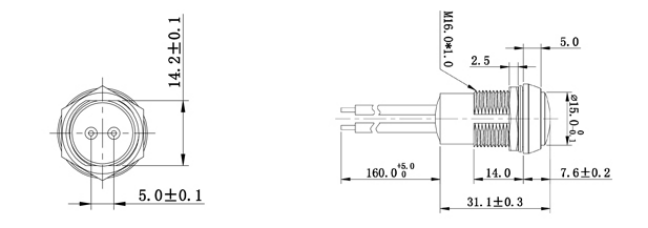

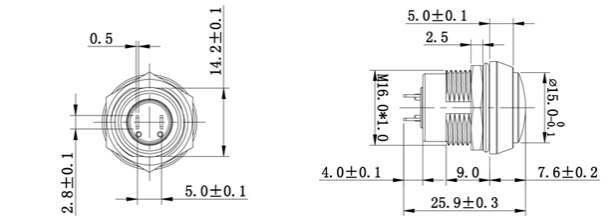

Product Size (mm)
Q: MOQ & Custom Options
A:Standard colors are available for regular orders. Custom colors or special requirements can be discussed based on order quantity.
