12mm Pushbutton for harsh environment
Product Information
| Product Series： A400 Series | LED Colors: Red, green, blue, yellow, white |
| Function: Momentary / Latching | LED Voltage: 2.4V |
| Circuit: SPST | Button Colors: Red, yellow, blue, green, orange, white, black, grey |
| Current Rating: 2A 250VAC / 4A 125VAC | Housing Material: PA66 nylon housing |
| Optional Rating: 4A 250VAC / 6A 125VAC | Nut Material: Brass |
| Mounting Hole: M12×1 | Sealing Ring: Rubber |
| Mounting Hole: 12mm | Mechanical Life: ≥200,000 cycles |
| Panel Thickness | Electrical Life: ≥50,000 cycles |
| Protection: IP67 front-panel sealed | Operating Temperature: -25°C to +85°C |
| Terminal: 2.8mm solder lug | Insulation Resistance: ≤50mΩ |
| Contact Material: Silver contact, gold-plated contact optional | Certifications: IP67, CE, RoHS, REACH |
| LED Type: Dot illumination | Custom Options: Button color, LED color, logo/symbol, wire length, connector, gold-plated contacts |
Product Business Terms
Minimum Order Quantity: |
Flexible MOQ is available for standard models. Custom colors, special contacts, and packaging requirements may require a specific MOQ. |
| Lead Time: | Standard models are available with regular production lead time. Delivery time depends on order quantity and customization requirements. |
Description
A400 Series 12mm Push Button Switch is designed for compact control panels and OEM equipment requiring reliable manual operation in limited panel space. This version features a white PA66 housing, a plastic button cap, and a 12mm panel mount design with M12 × 1 thread. It is available with multiple button colors, including black, red, green, blue, yellow, and white, with custom symbols such as power marks available for specific panel designs. With 2.8mm solder lug terminals, silver contacts, IP67 front panel sealing, and a rated load of 2A 250VAC / 4A 125VAC, the A400 Series provides a practical push button switch solution for industrial equipment, machinery panels, instruments, marine controls, and customized OEM control systems. |
Applications
Compact control panels,Equipment power buttons,Start / stop control interfaces,Status control interfaces,Test and measurement equipment,Power supply front panels,Audio equipment control panels,Broadcast equipment panels,Communication equipment,Security control panels,Access control devices,Public kiosk control panels,Self-service equipment,Commercial,appliance panels,Medical device control interfaces,Diagnostic equipment panels,Laboratory equipment,Marine dashboard panels,Vehicle auxiliary control panels,Transportation equipment interfaces,Fitness equipment panels,Charging equipment control panels,Low-voltage control circuits |

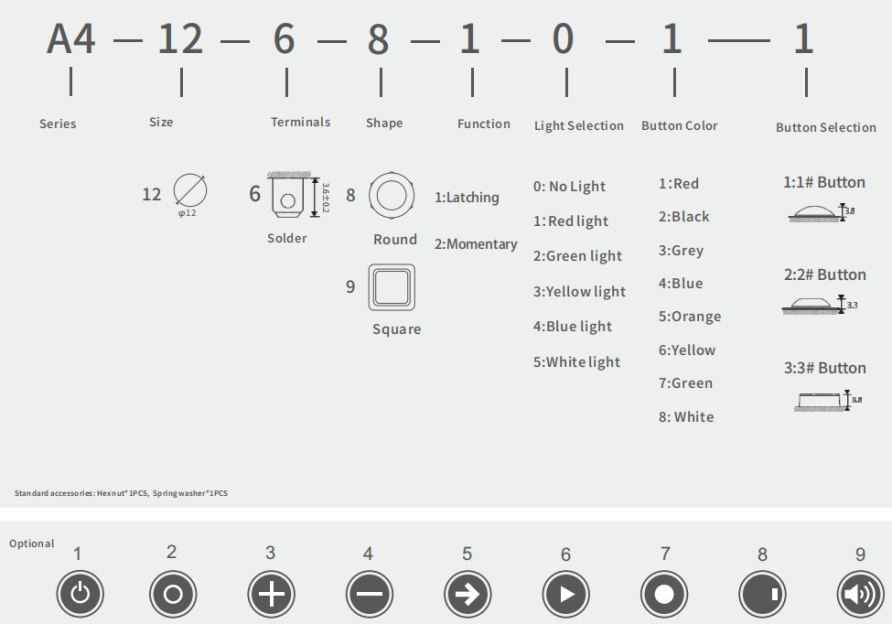

Build Your Part Number

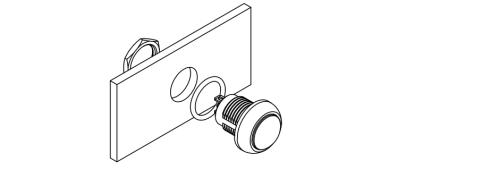

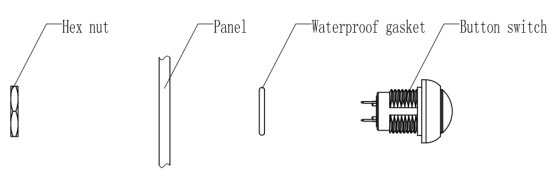

Recommended installation order
The rubber ring is installed under the panel to achieve a waterproof effect.

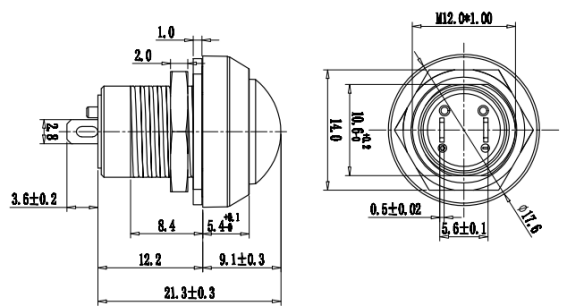

Product Size (mm)
Q: What is the difference between the A400 12mm push button switch and the white housing version?
A:A400 12mm push button switch refers to the complete A400 Series, including multiple housing styles, button colors, illuminated and non-illuminated options, momentary and latching functions, and different terminal configurations. The white housing version is one specific option within the A400 Series. It uses a white PA66 housing with a plastic button cap for compact control panels and OEM equipment interfaces. Customers can choose the standard A400 Series for broader configuration flexibility, while the white housing version is suitable for applications that require a clean visual design, reliable insulation, and a compact 12mm panel mount structure.
