A600 Series Push Button Switch

Minimum Order Quantity:

The A600 Series Push Button Switch is a compact 12mm panel mount push button switch designed for OEM control panels, industrial equipment, electrical devices, handheld controllers, marine panels, transportation equipment, and other compact control applications. With a glossy PA66 nylon actuator and durable plastic housing structure, this series provides a clean appearance, reliable switching performance, and flexible configuration options for professional equipment manufacturers.

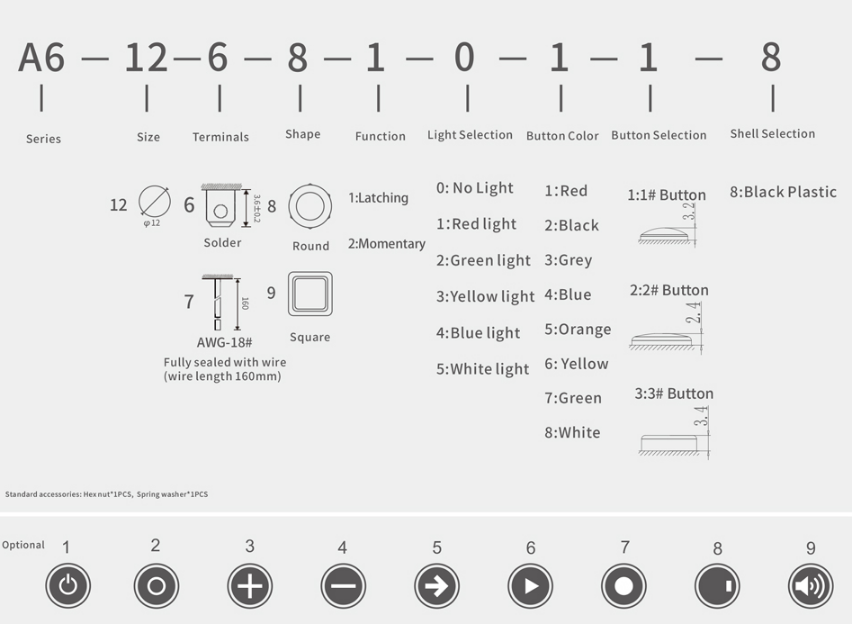

This series is available with both momentary and latching switch functions, making it suitable for signal control, power control, reset functions, mode selection, and compact operator interface designs. Momentary versions are commonly used for temporary actuation, while latching versions are suitable for maintained ON/OFF control. The A600 Series can be supplied with round or square button styles, allowing engineers and panel designers to select the most suitable actuator shape for different equipment layouts.

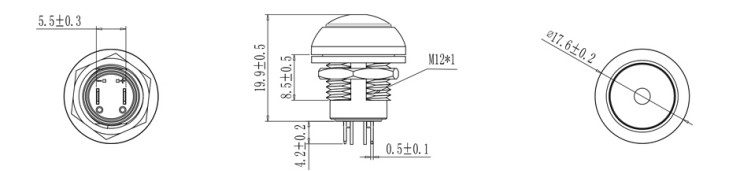

For visual status indication, illuminated versions are available with a center dot illuminated design. Standard LED colors include red, green, blue, yellow, and white. The standard LED voltage is 2.4V, and other LED voltages can be customized by adding a resistor according to the customer’s circuit requirements. Non-illuminated versions are also available for applications where a simple control input is required.

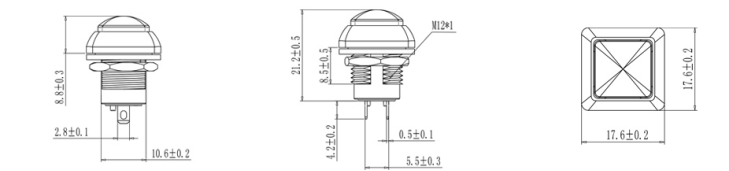

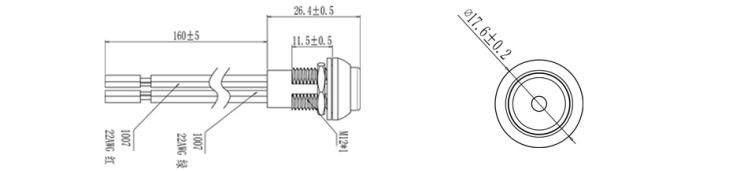

The A600 Series supports two main connection options: 2.8mm solder lug terminals and pre-wired versions. Standard terminal versions provide IP67 front panel sealing, helping protect the control panel side against dust and water ingress. For applications requiring stronger environmental protection, the wire lead version can be supplied with a fully sealed or fully waterproof structure. This makes the A600 Series suitable for control panels exposed to moisture, cleaning processes, outdoor environments, or compact equipment where sealing performance is important.

The housing and button are made of PA66 nylon, offering good mechanical strength, insulation performance, and stable appearance. The brass nut provides secure panel mounting, while the silver-plated copper contacts support stable electrical conductivity. Gold-plated contacts are available for low-level signal applications or customized project requirements.

With its compact 12mm mounting size, glossy button surface, multiple colors, illuminated options, and sealed wire lead structure, the A600 Series is a strong choice for OEM customers looking for a reliable plastic push button switch solution. It is especially suitable for buyers who need a compact alternative to premium sealed push button switches used in professional control panels, equipment handles, electrical control boxes, and industrial user interfaces.

The A600 Series Push Button Switch is suitable for compact control panels and equipment interfaces where reliable actuation, clear visual design, and environmental protection are required. It can be used in industrial control panels, handheld controllers, marine control panels, electrical equipment, power supply units, machinery interfaces, vehicle control systems, testing equipment, instrumentation, and OEM operator panels.

The glossy actuator surface and multiple button colors make it suitable for equipment that requires both functional control and a clean appearance. Illuminated versions can be used for status indication, signal confirmation, and user feedback, while the fully sealed wire lead version is suitable for applications exposed to moisture, dust, or outdoor operating conditions.
