A700 Series Push Button Switch

Minimum Order Quantity:

The A700 Series Push Button Switch is a 16mm panel mount push button switch designed for industrial control panels, machinery interfaces, vehicle control systems, and OEM equipment applications. This series is available in both plastic housing and metal housing options, giving buyers flexibility for different panel designs and installation requirements.

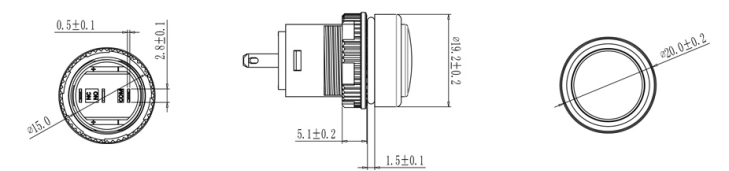

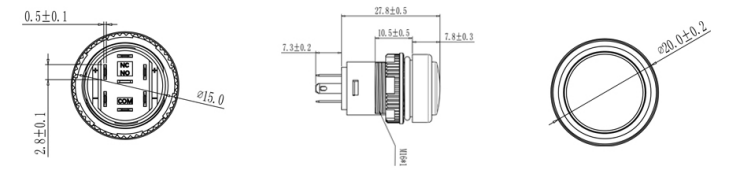

A700 Series supports momentary and latching / maintained functions. The switch uses a single pole contact structure with COM, NO, and NC terminals, making it suitable for control circuits that require normally open, normally closed, or changeover switching functions. The non-illuminated version is designed with 3 pins, while the illuminated version uses a 7-pin structure with additional LED terminals for lighting control.

With a rating of 3A 250VAC / 5A 125VAC, 2.8mm solder lug terminals, and IP67 front panel sealing, the A700 Series provides reliable performance for control panels exposed to dust, moisture, and regular operator use. The LED version is available in red, green, blue, yellow, and white, with 2.4V LED as standard. Other LED voltages can be customized by adding resistors according to customer requirements.

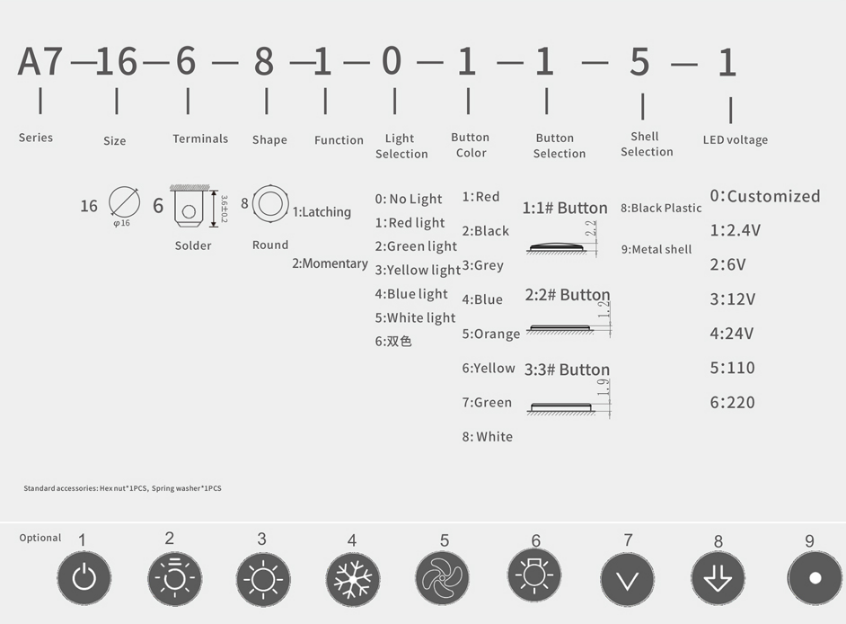

The A700 Series also supports multiple button colors, high actuator styles, and custom symbols, making it suitable for function identification in OEM panels, equipment dashboards, operator consoles, and machinery control interfaces.

A700 Series Push Button Switches are used in industrial control panels, machinery equipment, vehicle dashboards, operator control boxes, marine equipment, power control systems, automation devices, and OEM control interfaces. With IP67 front panel sealing, illuminated and non-illuminated options, and customizable button symbols, this series is suitable for applications where operators need clear function identification and reliable switching performance.
