Momentary Push Button Switch with 1NC and 1NO+1NC contact options
Product Information
Product Series： AX Series
Contact Material: Silver contact, gold-plated contact optional
Function: 1NC/ 1NO+1NC
Button Colors: Red, yellow, blue, green, orange, white, black, grey
Switch Function: Momentary
Housing Material: Nylon housing / Metal housing option for 16mm
Current Rating: 2A 250VAC / 4A 125VAC
Nut Material: Brass
Optional Rating: 4A 250VAC / 6A 125VAC
Sealing Ring: Rubber
Mounting Hole: 12mm / 16mm
Mechanical Life: ≥200,000 cycles
Thread Size: M12×1 / M16×1
Electrical Life: ≥50,000 cycles
Protection: IP67 front-panel sealed
Operating Temperature: -25°C to +85°C
Terminal: 2.8mm solder lug / wire lead for 16mm
Insulation Resistance: ≤50mΩ
Default Wire: AWG18, 160mm length
Certifications: IP67, CE, RoHS, REACH
Product Business Terms
Minimum Order Quantity: |
Flexible MOQ is available for standard models. Custom colors, special contacts, and packaging requirements may require a specific MOQ. |
| OEM & Bulk Supply: | Suitable for OEM equipment manufacturers, control panel builders, machinery factories, and industrial component distributors. |
Description
|
AX Series Push Button Switch is a compact non-illuminated momentary push button switch designed for industrial control panels, machinery equipment, control handles, vehicle control systems, and OEM electrical control applications. The series is available in 12mm and 16mm mounting sizes, with 1NC and 1NO+1NC contact configurations to support normally closed circuits, control signal switching, and applications requiring both normally open and normally closed contact logic.
The 12mm version is designed with a nylon housing and 2.8mm solder lug terminals, making it suitable for compact panel layouts and equipment control interfaces. The 16mm version offers 2.8mm solder lug terminals and sealed wire lead options, with optional metal housing for applications requiring stronger panel mounting or a more durable appearance. For custom projects, stainless steel housing can also be supplied.
With IP67 front panel sealing, silver-plated contacts, brass nut, nylon button cap, and sealing ring structure, AX Series provides reliable operation in demanding control environments where dust, moisture, vibration, and frequent operation may be present. The series is rated at 2A 250VAC / 4A 125VAC, with a mechanical life of 200,000 cycles minimum and an electrical life of 50,000 cycles minimum.
AX Series is especially suitable for OEM customers looking for compact momentary push button switches with normally closed or 1NO+1NC contact options. Multiple button colors, flat and raised head styles, solder lug terminals, and sealed wire lead versions allow flexible selection for different control panel designs and equipment applications. |
Applications
AX Series Push Button Switch is suitable for control panels, industrial equipment, machinery control systems, construction equipment, transportation equipment, control handles, power supply units, test instruments, and OEM electrical control interfaces. The 1NC and 1NO+1NC contact options make this series useful for stop circuits, reset controls, signal switching, auxiliary control functions, and equipment operation panels where compact size and reliable momentary action are required. |

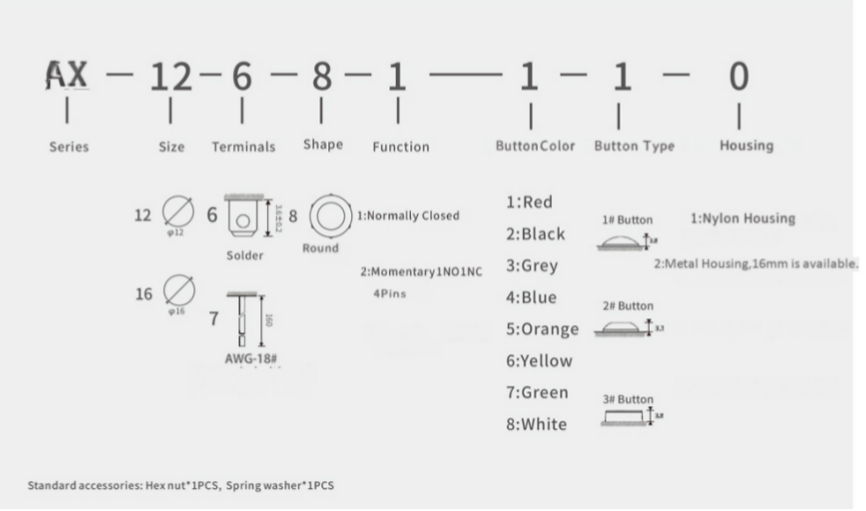

Build Your Part Number
Q1: What is the difference between 1NC and 1NO+1NC contact configurations?
A: 1NC means the switch has one normally closed contact. The circuit is closed when the button is not pressed and opens when the button is pressed. 1NO+1NC provides both normally open and normally closed contacts, allowing one switch to control two circuit states at the same time.
Q2: Is AX Series a momentary or latching push button switch?
A: AX Series is a momentary push-button switch. The button returns to its original position after being released.
Q3: Can AX Series be supplied with wire leads?
A: Yes. The 16mm version can be supplied with sealed wire leads. The standard wire specification is AWG18 with 160mm length. The 1NC version uses 2 wires, while the 1NO+1NC version uses 4 wires.
