A800 series 19mm IP65 Illuminated Touch Switch
Product Information
Product Series: A800 Series
Protection Rating: IP65 Front Panel Sealing
Product Type: Capacitive Touch Switch
Operating Temperature: -25°C to +55°C
Mounting Size: 19mm
Illumination: Green for ON / Red for OFF；Dual-Color LED
Operating Mode: Momentary or Latching
LED Color: Customizable
Rated Load: 1A 24VDC / 1A 220VAC
Mounting Type: Panel Mount
Product Business Terms
| Customization | Symbols, LED colors, housing colors, operating modes and wiring configurations can be customized |
Description
|
The A800 Series Capacitive Touch Switch is a 19mm panel-mount control switch designed for modern equipment interfaces requiring simple operation, clear visual indication and a durable metal appearance. Capacitive sensing allows the switch to respond to a light finger touch without the mechanical travel associated with conventional pushbutton switches.
The series is available with momentary or latching operation to support different equipment control requirements. A dual-color LED provides clear operating status indication, with green displaying the ON state and red displaying the OFF state as the standard configuration. LED colors, operating logic and illuminated symbols may be customized according to the control panel design.
The front housing is manufactured from stainless steel, while the polycarbonate base provides electrical insulation and structural support. With a 19mm mounting size and IP65 front panel sealing, the A800 touch switch is suitable for industrial control panels, access systems, smart equipment, medical devices, commercial appliances and other human-machine interface applications. Custom power, fan, lighting, arrow, snowflake and customer-specific symbols are available for OEM projects. |
Applications
Industrial control panels, Access control equipment, Smart home systems, Commercial appliances, Medical and laboratory equipment, Automation equipment, Electronic instruments, Lighting control systems, Ventilation and cooling equipment, Human-machine interfaces. |

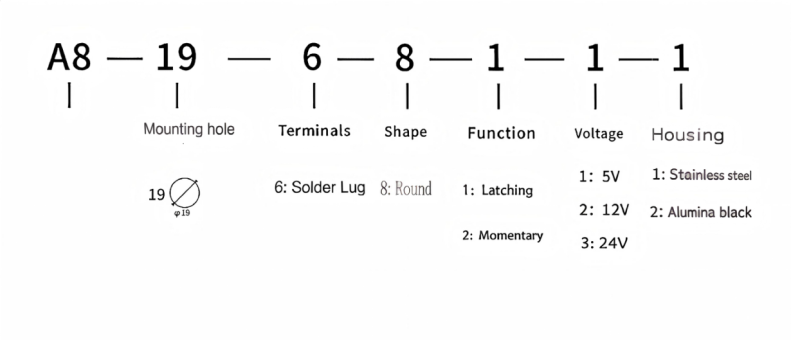

Build Your Part Number

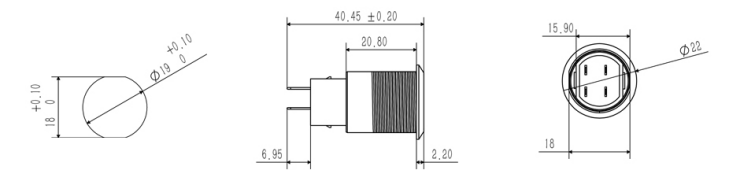

Dimension
Q1. What is the difference between a capacitive touch switch and a mechanical push button switch?
A: A capacitive touch switch detects a finger through changes in capacitance and does not require conventional button travel. A mechanical pushbutton must be physically pressed to operate its internal contacts. The A800 Series is better suited to control panels requiring a flat appearance, light-touch operation, and illuminated status feedback.
Q2. Is the A800 touch switch available in both momentary and latching versions?
A:Yes. The A800 Series can be supplied with a momentary or a latching operation. The momentary version changes output only while activated or according to its programmed output logic, while the latching version maintains its changed state until the switch is touched again.
