12mm Panel Mount Metal Lever Toggle Switch
Product Information
| Part Number:T101CT | Contacts:Silver |
| Rating Amps/Voltage:5A,250VAC / 8A,125VAC | Mounting Hole Dimensions (mm):M12*1 |
| Positions:ON-OFF-ON | Mounting Type:Panel Mount |
| Terminals:Quick Connect | Operating Temp Range:−25°C to +85°C |
| Circuitry:SPDT | Mechanical life:≥50,000 cycles |
| Actuator:Standard Round | Electrical life:≥20,000 cycles |
| Actuator Details:Chrome-Plated Brass | Certification:CE,RoHS |
Product Business Terms
| Minimum Order Quantity: | 100 PCS |
| Payment Terms: | T/T, PayPal |
Description
T100 Series Panel Mount Toggle Switch is a low-current SPDT toggle switch designed for control panels, instruments, electronic equipment, and auxiliary control circuits. With a standard 12mm panel mounting design, it provides easy installation and reliable manual operation in compact control assemblies. The switch supports ON-OFF-ON function and is rated 3A 250VAC / 5A 125VAC, making it suitable for signal control, function selection, and light-duty electrical switching applications. It features 6.3mm quick-connect terminals for convenient wiring, silver-plated contacts for stable conductivity, and a brass nut for secure panel fixing. The T100 Series offers a minimum 20,000-cycle electrical life and 50,000-cycle mechanical life, with an operating temperature range of -25°C to +85°C. CE and RoHS compliance make it a practical choice for OEM equipment and industrial control products requiring a compact, standard panel mount toggle switch. |

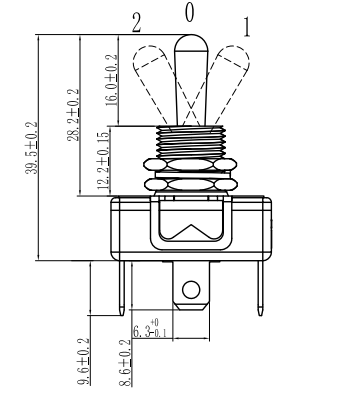

Product Size (mm)
 |
