The T500LM Sealed locking lever toggle switch designed for harsh environments, featuring front-panel sealing and a locking lever mechanism to help prevent accidental operation in mission-critical equipment.
Product Information
| Series:T500LM Series | Contacts:Silver(Gold-Plated Contacts Customizable) |
| Description:Waterproof Locking Lever Toggle Switch | Mounting Hole Dimensions (mm):M12 |
| Waterproof Rating:IP67 (Sealed above the panel ,Pre-wire terminals fully waterproof) |
Mounting Type:Panel Mount |
| Rating Amps/Voltage:15A,250V / 20A,125V | Operating Temp Range:−25°C to +85°C |
| Customizable Amps:25A,30A | Customizable Temp:−40°C to +85°C |
| Positions:2 Positions,3 Positions | Mechanical life:≥50,000 cycles |
| Actuator Action:Maintained / Momentary | Electrical life:≥20,000 cycles |
| Terminals:Screw,Quick Plug,Solder Lug,Pre-wire,Bolt Terminal | Dielectric Strength:500VAC RMS min |
| Circuitry:SPST/SPDT/DPDT/DPST | Contact Resistance:50mΩ max |
| Housing:Nylon((Contains flame-retardant materials)) | Insulation Resistance：100MΩ min |
| Actuator Color:Silver | Certification:CE,IP67,ISO9001,RoHS,FCC |
Product Business Terms
| Minimum Order Quantity: | 100 PCS |
| Payment Terms: | T/T,PayPal |
| Shipping: | DHL/UPS/FedEx/Air/Sea |
| Quality Control: | 100% testing before shipment. |
Description
|
The T500LM Series Sealed Locking Lever Toggle Switch is designed for demanding control applications where reliable switching, environmental sealing, and protection against accidental operation are required. This series adds a locking lever mechanism that requires intentional operation before switching, helping reduce unintended actuation caused by vibration, impact, or operator misoperation. The T500LM Series IP67 front panel sealing, with an O-ring supplied for sealed panel mounting. The locking lever bushing also includes a sealing structure to improve protection around the actuator area. For toggle switch with potted wire leads, the terminal side can provide full waterproof protection, making the switch suitable for equipment exposed to moisture, dust, vibration, and outdoor operating conditions. Built with an aluminum alloy locking lever, nylon housing, brass mounting nut, and silver contacts, this sealed locking lever toggle switch is engineered for stable electrical performance and long-term mechanical reliability. The standard electrical rating is 15A 250VAC / 20A 125VAC. The T500LM series is available in common single and double-pole , including SPST,SPDT,DPST,DPDT, with maintained and momentary operation options. T500LM Series sealed locking lever toggle switches are suitable for industrial equipment, military equipment, aviation cockpit controls, special vehicles, construction machinery, marine systems, and other high-vibration or mission-critical applications where accidental switching must be avoided. The locking lever design helps maintain safer manual control in harsh environments, especially where vibration or impact may cause ordinary toggle switches to move unintentionally. With CE, IP67, RoHS, and FCC compliance, the T500LM Series provides a sealed locking lever toggle switch solution for applications requiring waterproof protection, secure manual operation, durable construction, and stable switching performance. |
Applications
| Industrial control panels，Construction and off-highway equipment，Military equipment，Flight Simulator Cockpit，Special vehicles and transportation systems，outdoor control systems，High-vibration machinery and mission-critical controls, etc. |

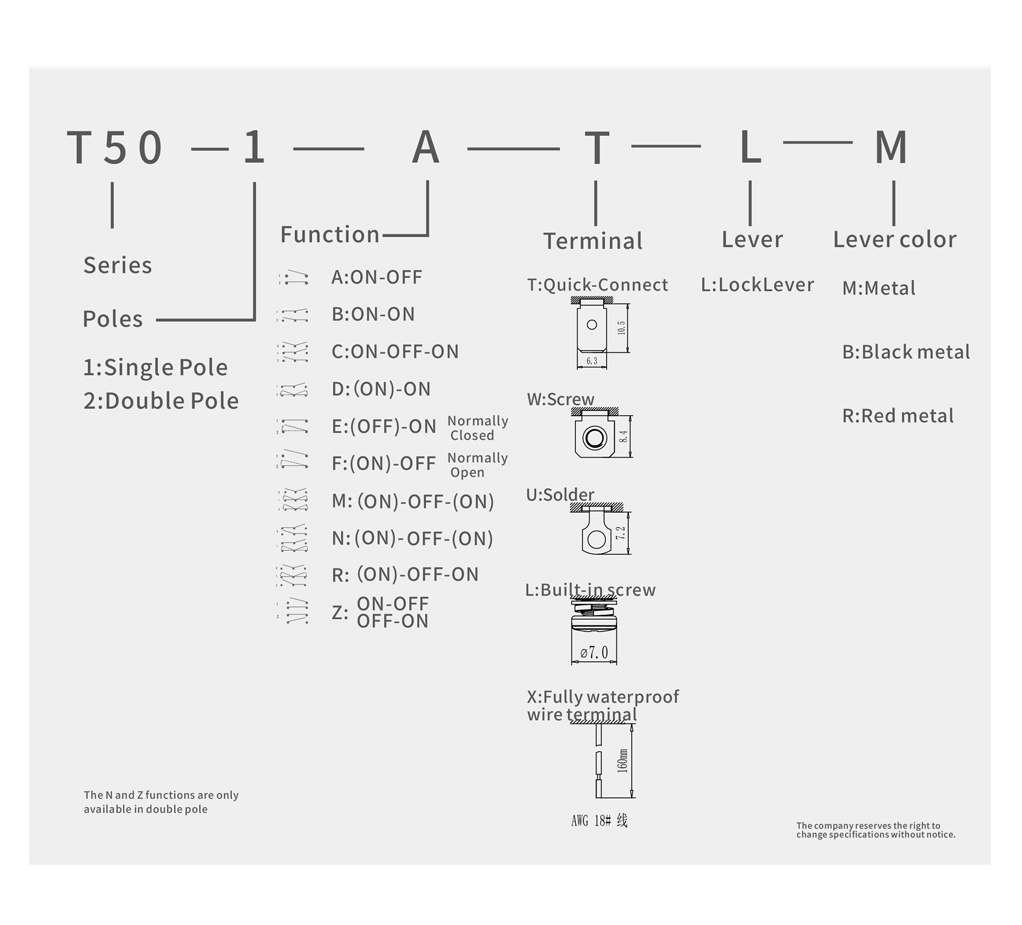

Build Your Part Number

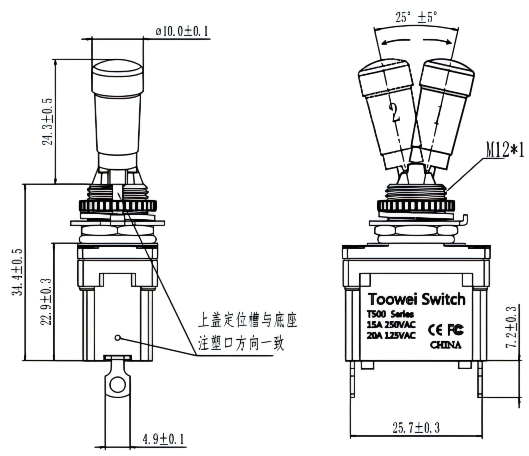

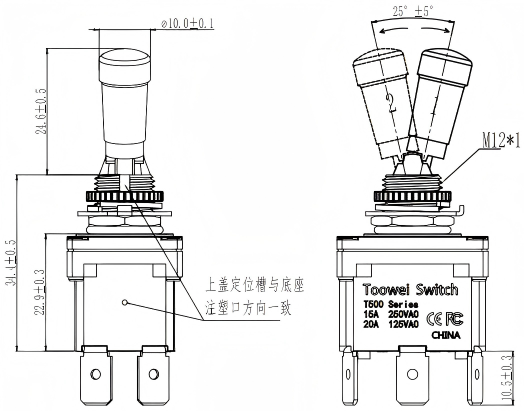

Product size (mm)
Single Pole
 |
||
 |
Double Pole
 |
||
 |
Q:How does the pull-to-unlock security mechanism work?
A:To switch positions, pull the lever first, then move it. This prevents the switch from flipping due to accidental impacts or severe vibrations.
Q:Can you provide 3D CAD models for design verification?
A:Yes. We provide STEP to our customers.
