T600 Series Toggle Switch

The T600 Series Toggle Switch is a panel-mount toggle switch designed for industrial control panels, electrical equipment, automation systems, and general OEM applications. As a reliable industrial toggle switch, the T600 Series provides a practical balance of mechanical strength, electrical performance, flexible circuit options, and easy panel installation. It is suitable for applications where a durable, easy-to-operate toggle switch is required in indoor or protected control environments.

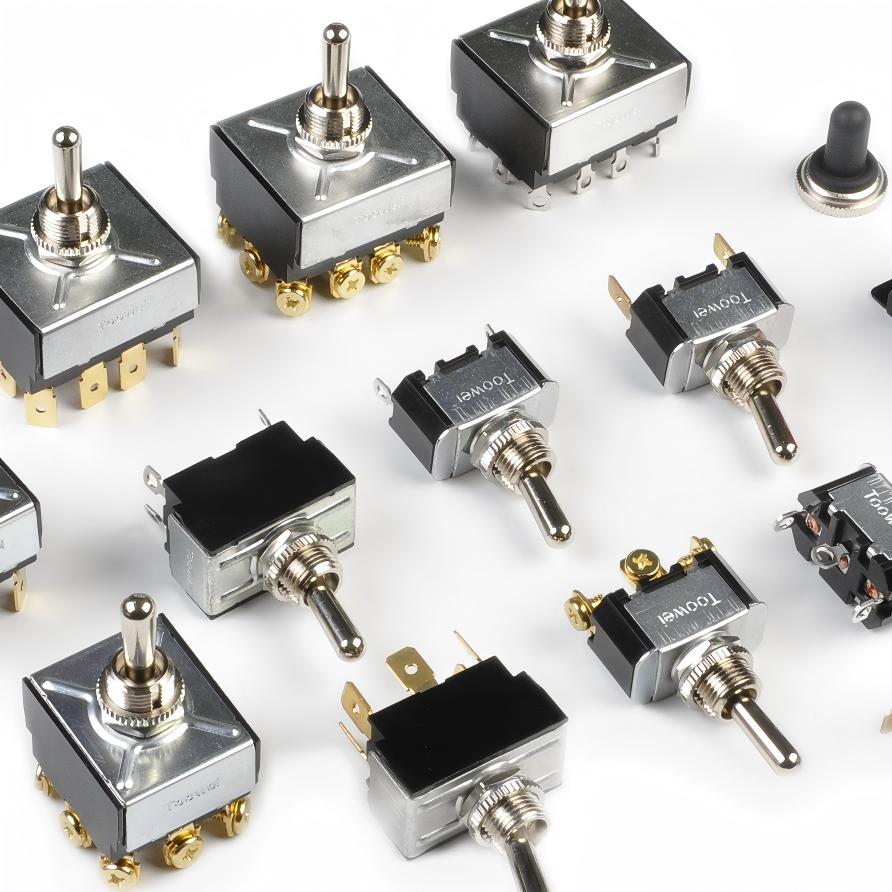

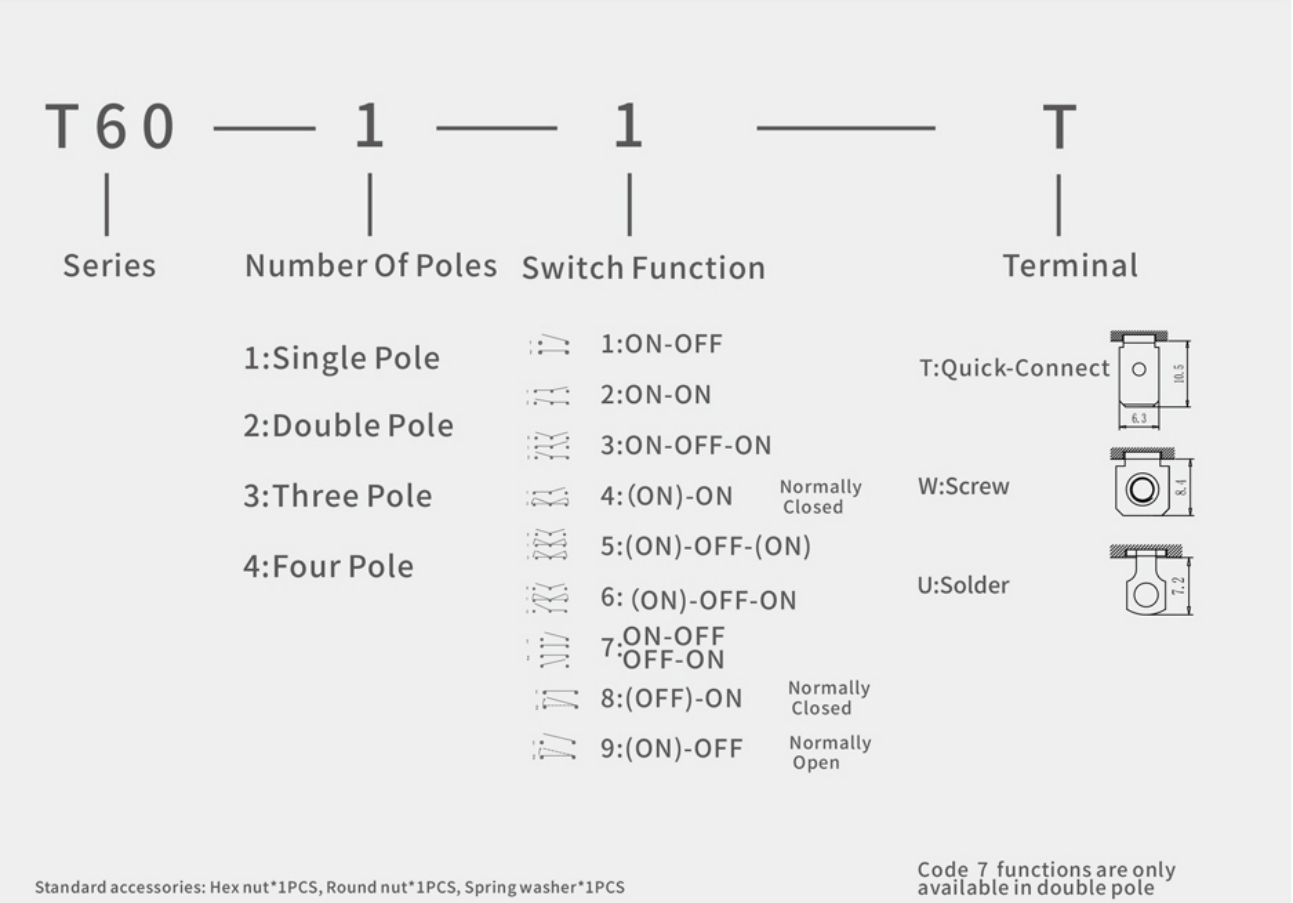

The T600 series is available in 1-pole, 2-pole, 3-pole, and 4-pole configurations. The wide pole selection allows engineers and equipment manufacturers to choose the correct switching structure for different control circuits. Common switch functions such as ON-OFF, ON-ON, ON-OFF-ON, as well as maintained and momentary toggle switch functions, are available according to the model selection table.
The T600 Series is designed with multiple terminal options, including screw terminals, solder lug terminals, and 6.3mm quick-connect terminals. These termination styles provide flexibility for different wiring methods and assembly processes.

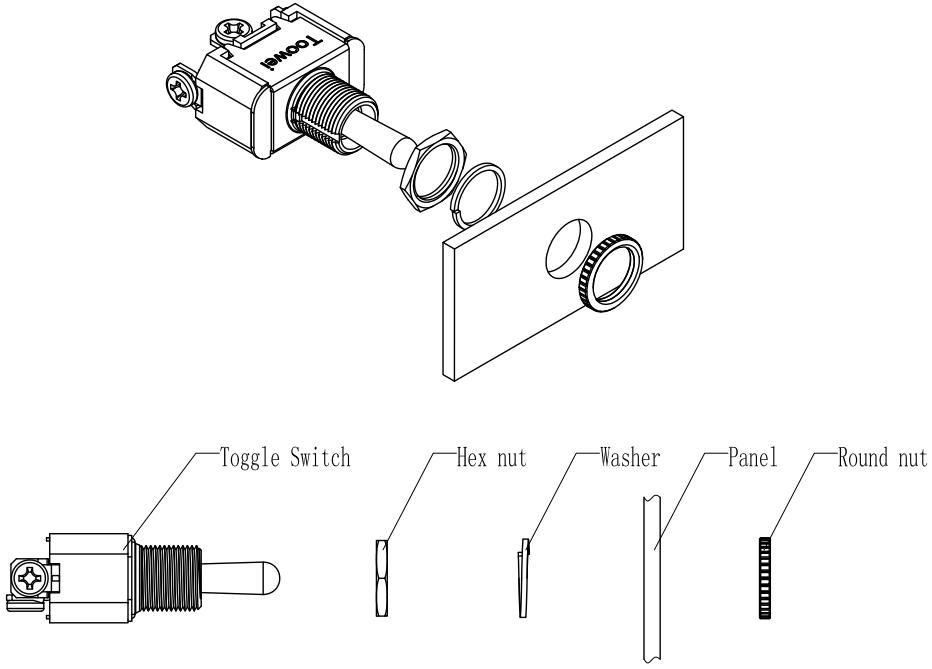

For panel installation, the T600 Series uses a 12mm mounting hole and M12 × 1 threaded bushing, making it suitable for standard control panels, machinery panels, electrical boxes, and instrument panels. The standard round metal lever provides clear manual operation, while the brass nickel-plated lever, threaded bushing, and mounting nut offer good mechanical durability and corrosion resistance for general industrial use. The switch body is made with a durable PA66 nylon housing, providing stable insulation performance and structural strength.

With an electrical rating of 10A 250VAC / 15A 125VAC, the T600 Series toggle switch is suitable for many low-voltage and medium-duty control applications. The silver contact material supports reliable conductivity and stable switching performance. The series is designed for a mechanical life of at least 50,000 cycles and an electrical life of at least 20,000 cycles, helping equipment manufacturers reduce replacement frequency and improve long-term product reliability.

Unlike sealed toggle switches, the T600 Series is a non-sealed toggle switch. It is recommended for indoor equipment, protected panels, control cabinets, production line control consoles, test equipment, instrumentation, communication equipment, and other applications where full waterproof protection is not required. Compatible protective boots are available to enhance front-panel dust and splash protection when additional environmental sealing is required.

The T600 Series is compliant with CE and RoHS requirements and is manufactured under an ISO 9001 certified quality management system. It is designed for B2B customers, OEM manufacturers, panel builders, equipment integrators, and distributors looking for a stable, configurable, and cost-effective panel mount toggle switch solution.

With multiple pole options, maintained and momentary functions, several terminal configurations, a durable nylon housing, silver contacts, and a simple but reliable mechanical structure, the T600 Series Toggle Switch is a dependable choice for industrial control panels and general electrical equipment applications.
