T600S Series IP68 Toggle Switch

TOOWEI T600S Series IP68 Front Panel Sealed Toggle Switch is designed for industrial control panels, outdoor equipment, marine control panels, transportation systems, off-road equipment, ground-based equipment, and other demanding control applications requiring reliable front panel sealing protection. As an industrial panel-mount toggle switch, the T600S Series combines mechanical durability, flexible circuit options, and IP68 front panel protection for applications exposed to heat, cold, humidity, water, dust, or particulate contaminants.

The front panel components were tested under 1 meter of water for 1 hour in accordance with IEC 60529. This protection applies to the front panel side of the switch after panel installation, including the lever and bushing area, and should not be understood as full-body waterproof protection for the rear terminals or the entire switch body. For buyers searching for an IP68 toggle switch, front panel sealed toggle switch, or waterproof toggle switch for control panels, the T600S Series offers a practical solution for panel-side sealing requirements in industrial and outdoor environments.

The sealing design includes an internal bushing seal between the lever and threaded bushing, together with a panel-mount O-ring to help prevent water and dust ingress from the front side of the panel. This structure makes the T600S Series suitable for control panels installed in wet, humid, dusty, or exposed environments, while maintaining the familiar operation and installation style of a traditional toggle switch.

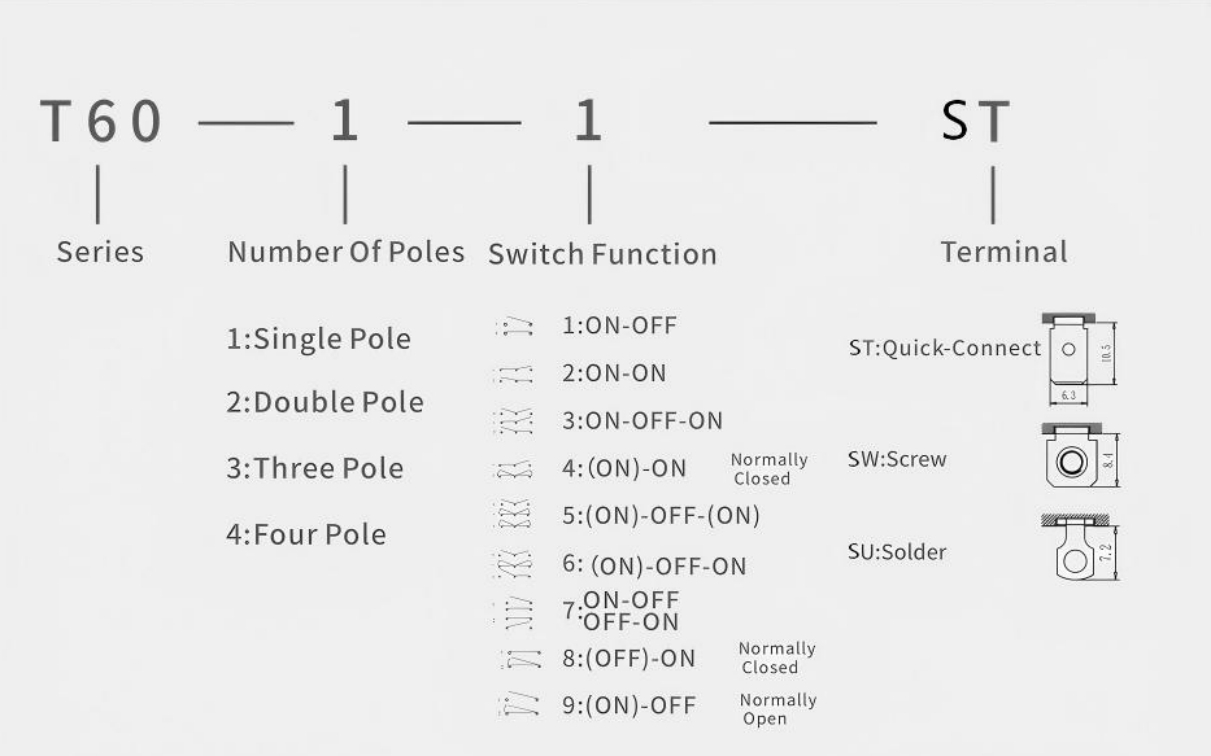

This series is available with 1 to 4 pole configurations and supports common toggle switch functions, including ON-OFF, ON-ON, and ON-OFF-ON, as well as maintained and momentary action options depending on the circuit configuration. The T600S Series also offers multiple terminal choices, including screw terminals, solder lug terminals, and 6.3 mm quick-connect terminals.

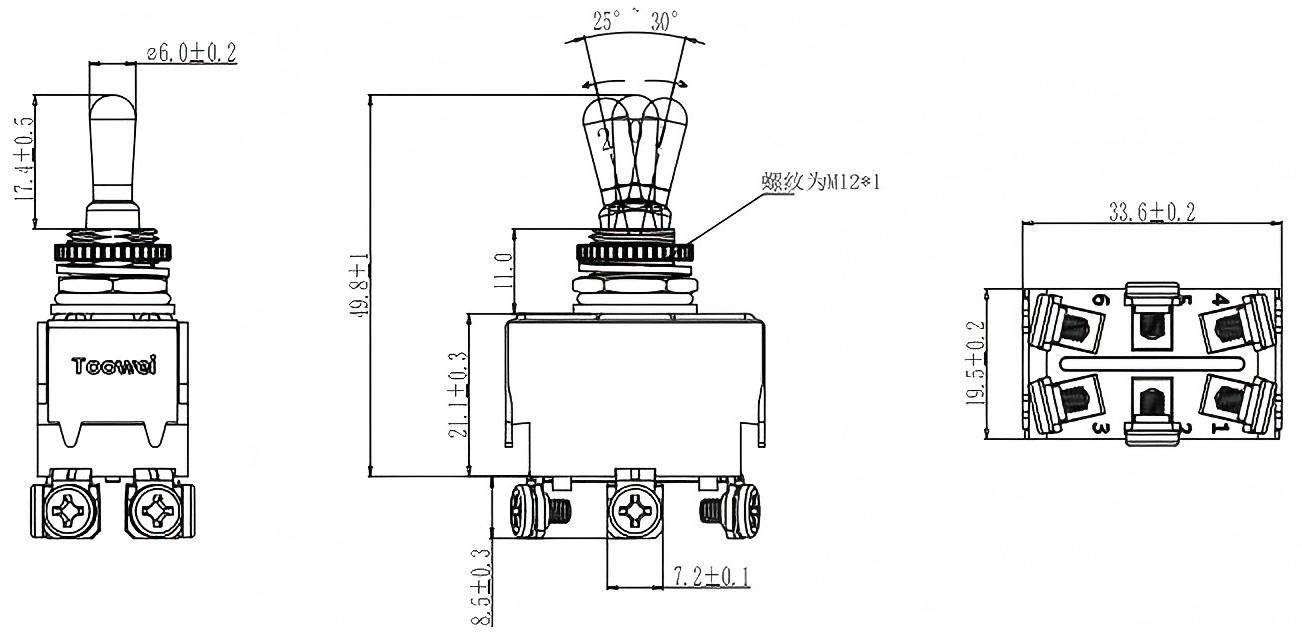

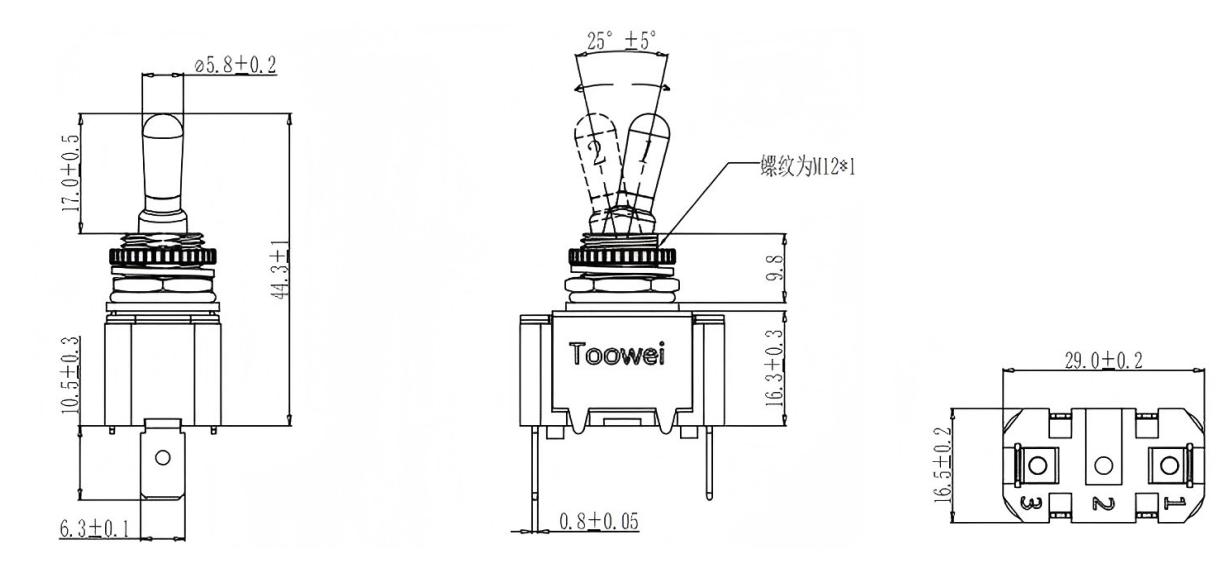

The switch is rated at 10A 250VAC / 15A 125VAC, with DC voltage options including 12VDC, 24VDC, 36VDC, and 48VDC according to application requirements. A 12 mm panel cut-out and M12 × 1 threaded bushing support standard panel mounting. The nickel-plated brass lever, silver contacts, metal housing, and nylon base provide stable performance for industrial equipment and long-term control applications.

With a mechanical life of ≥50,000 cycles, electrical life of ≥20,000 cycles, and operating temperature range from -25°C to +85°C, the T600S Series is suitable for OEM control systems, industrial electrical enclosures, outdoor machinery panels, marine equipment panels, and demanding environments where front panel sealing and reliable switching performance are required.
