Compact low-current pushbutton switch.
Product Information
| Series: T601A Series | Contact Material: Silver |
| Switch Type: Push Switch / Pushbutton | Mounting Type: Panel Mount |
| Operation: Momentary | Operating Temp Range: −25°C to +85°C |
| Circuit Function: OFF-(ON), ON-(OFF) | Mechanical life: ≥50,000 cycles |
| Circuit: SPST | Electrical life: ≥20,000 cycles |
| Rating Amps/Voltage: 1A,250VAC / 2A,125VAC | Dielectric Strength: 500VAC RMS min |
| Mounting Hole: 12mm | Contact Resistance: 50mΩ max |
| DC Voltage: 12VDC, 24VDC, 36VDC, 48VDC | Insulation Resistance: 100MΩ min |
| Button Options: Metal, Black Plastic, Red Plastic | Certification: CE,RoHS |
| Terminals: Solder Lug,Pre-Wire |
Product Business Terms
| Quality Control: | 100% testing before shipment. |
| Payment Terms: | T/T,PayPal |
Description
|
The T601A Series Push Switch is a compact, low-current momentary push switch designed for control panels, instrument panels, electronic equipment, and other applications requiring reliable manual signal control. The T601A Series is available with single-pole momentary functions, including OFF-(ON) and ON-(OFF) circuit options. The momentary operation makes the switch suitable for temporary signal activation, reset functions, auxiliary control, testing circuits, and other applications where the circuit only needs to be changed while the button is being pressed. The series is available with different button styles to match various panel designs. Button options include metal button, black plastic button, and red plastic button. These options allow engineers and equipment manufacturers to select the right appearance and operating feel based on the function of the switch, panel design, and user interface requirements. The black and red plastic buttons are useful for functional differentiation, while the metal button provides a more durable and professional panel appearance. For connection options, the T601A Series can be supplied with solder lug terminals or AWG18 wire leads with 160mm length. Solder lug terminals are suitable for direct wiring or assembly into standard control panels, while wire lead versions can help simplify installation in compact equipment, enclosed panels, or customized wiring harnesses. The switch uses silver contacts to support stable electrical performance in low-current switching applications. |

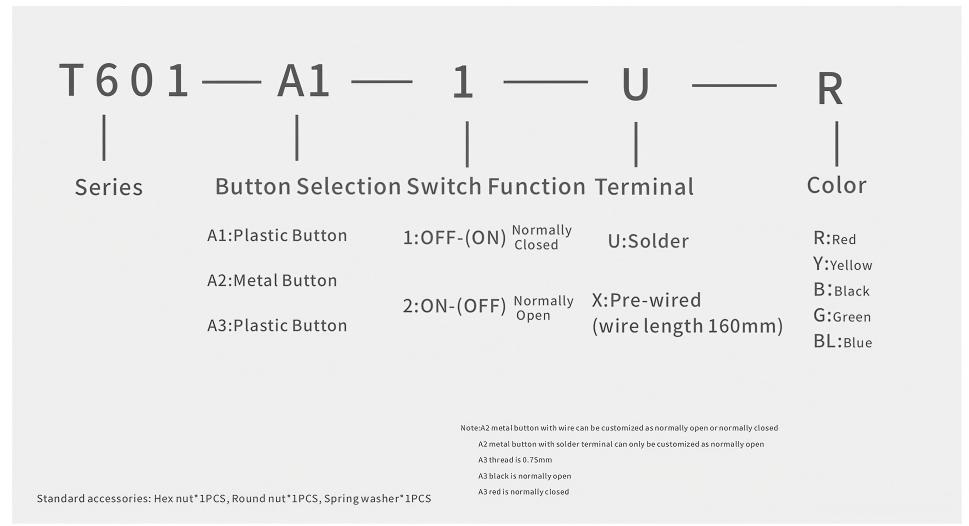

Build Your Part Number

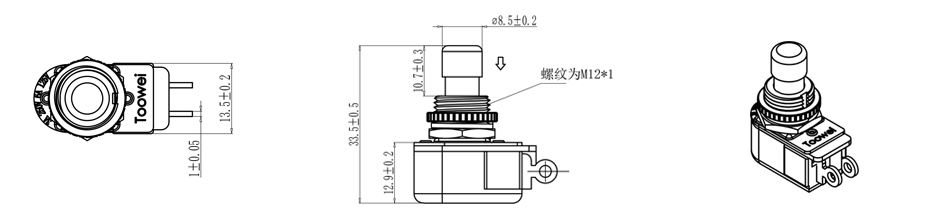

Product Size (mm)
Q: Can this switch be used for high-power load switching?
A: No. The T601A Series is designed for low-current control circuits. For higher current or power switching applications, a higher-rated toggle switch or push button switch should be selected.
Q: Can the button color be customized?
A: Standard options include metal, black plastic, and red plastic buttons. Other colors may be available upon request, depending on order requirements.
Q: What is the wire length for the wire lead version?
A: The wire lead version uses AWG18 wires with a length of 160 mm. Other wire lengths and specifications can be customized.
