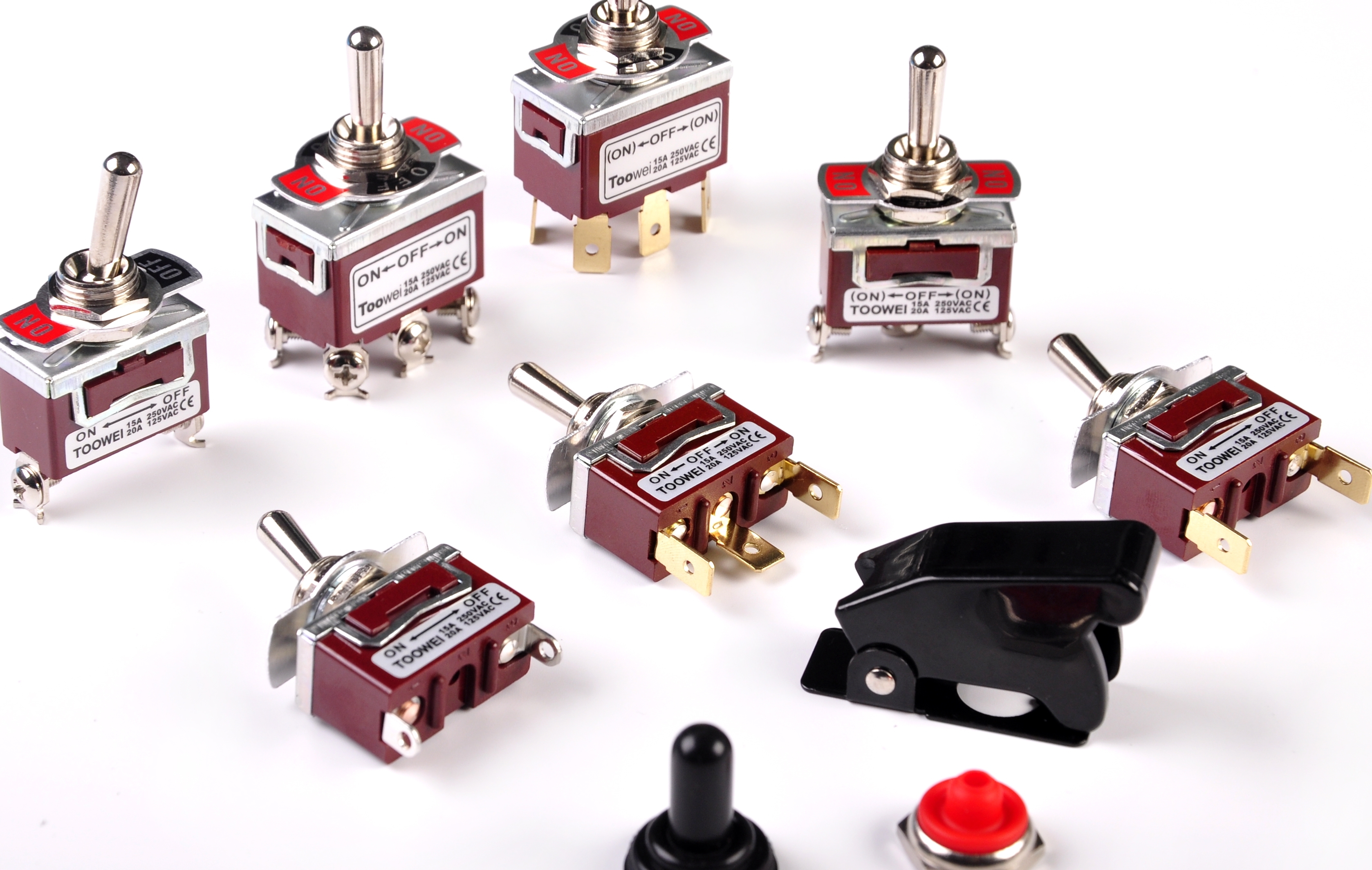

T700 Series Toggle Switch

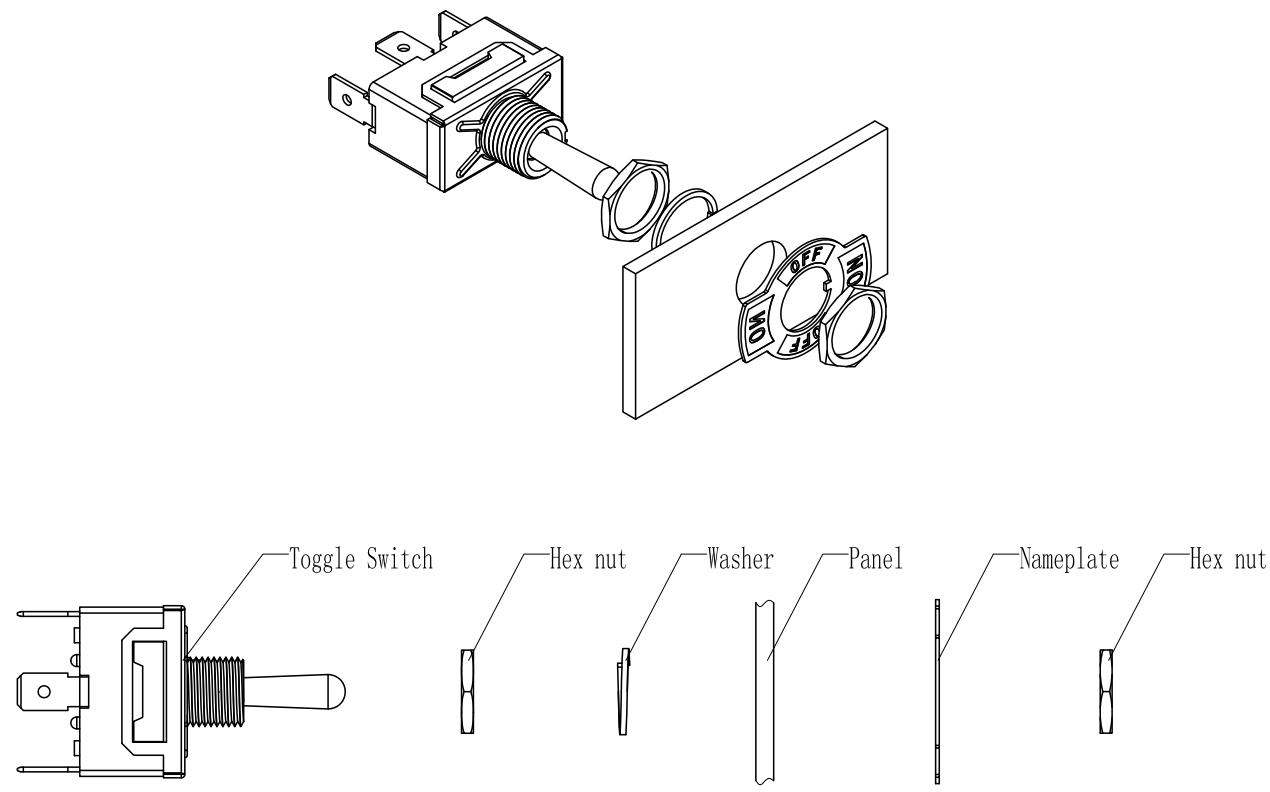

The T700 Series Toggle Switch is a standard-size heavy-duty toggle switch designed for industrial control panels, machinery equipment, power control units, operator interfaces, and OEM electrical systems. Built with a robust panel-mount structure, this series is suitable for applications that require reliable manual switching, clear operating feedback, and flexible configuration options.

This series is rated at 10A 250VAC / 15A 125VAC, making it suitable for a wide range of industrial and commercial electrical control applications. For projects requiring higher current capacity, 25A and 30A customized versions can also be supplied under the same general appearance and structure, depending on circuit design and application requirements. This gives equipment manufacturers more flexibility when selecting a toggle switch for different current loads, panel layouts, and system designs.

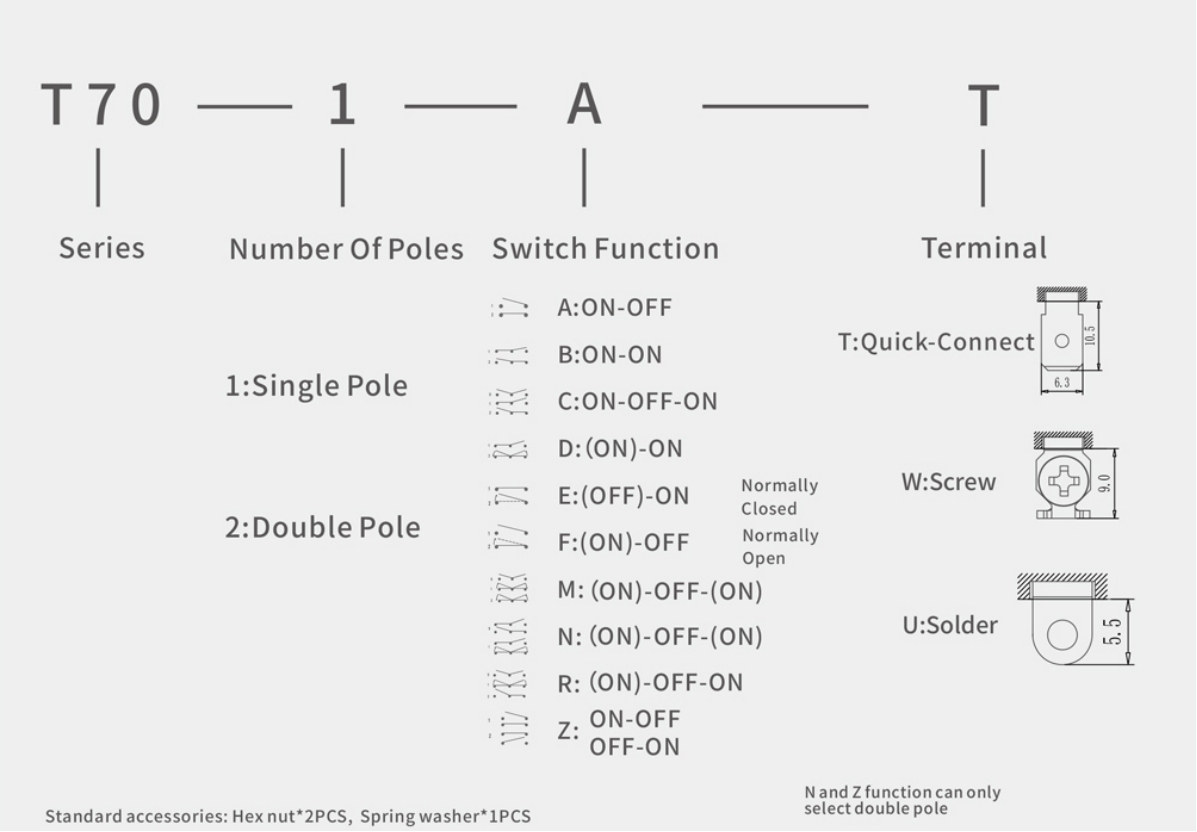

The T700 Series is available in single-pole and double-pole configurations and supports a wide range of common switching functions, including ON-OFF, ON-ON, and ON-OFF-ON, as well as maintained and momentary operation. These function options allow the switch to be used for power control, mode selection, direction control, circuit selection, signal switching, and other manual control tasks. Whether the application requires a simple two-position switch or a three-position control function, the T700 Series can provide a practical and reliable solution.

To meet different wiring and assembly requirements, the T700 Series offers multiple terminal options, including screw terminal, solder lug, and 6.3mm quick-connect terminal. Screw terminals are suitable for secure field wiring and maintenance-friendly installation. Solder lug terminals are commonly used where compact and fixed wiring is preferred. The 6.3mm quick-connect terminal option supports faster assembly and easier replacement in production environments. These terminal choices make the series suitable for both OEM manufacturing and panel-building applications.

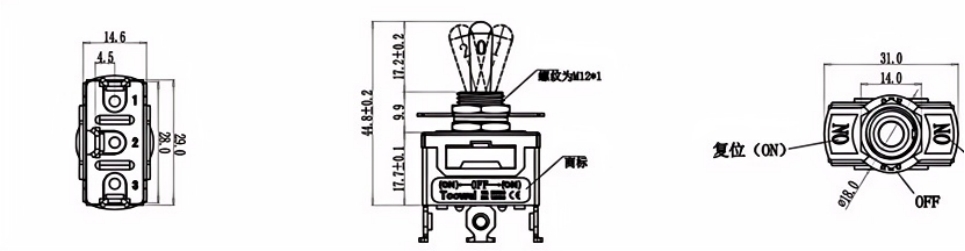

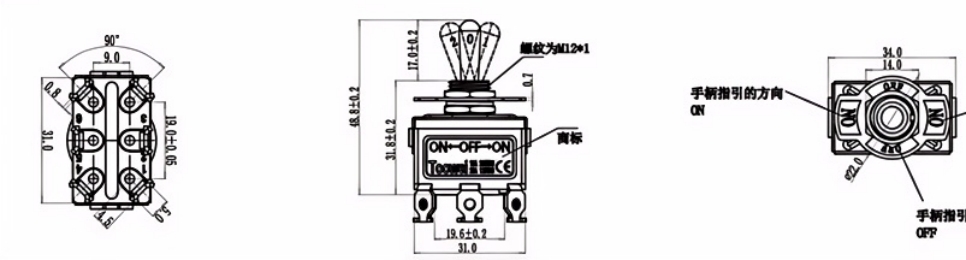

The switch structure combines a nylon housing, metal top cover, and brass chrome-plated lever, providing a durable mechanical design for repeated manual operation. The standard lever offers a familiar operating feel for general control applications, while long lever and short lever options can be customized according to project requirements and minimum order quantity. The use of silver contacts supports stable electrical conductivity and dependable switching performance over repeated cycles.

The T700 Series is not designed as a waterproof toggle switch. It is best suited for protected equipment panels, indoor control boxes, and general machinery applications where full sealing is not required. For applications exposed to direct water spray, rain, outdoor weather, or heavy contamination, a sealed toggle switch series should be selected instead. This clear product positioning helps buyers choose the right switch series according to the actual working environment.

With a minimum mechanical life of 50,000 cycles and a minimum electrical life of 20,000 cycles, the T700 Series is designed for dependable long-term performance in daily control operations. The operating temperature range of -25°C to +85°C allows the switch to be used in many industrial and equipment environments. The series also complies with CE and RoHS requirements, supporting use in international OEM projects and export-oriented equipment manufacturing.

The T700 Series Heavy-Duty Toggle Switch is a suitable choice for customers looking for a standard-size panel mount toggle switch with solid construction, multiple pole and function options, flexible terminal choices, and higher current customization capability. It is widely applicable to industrial control panels, machinery control systems, generator panels, HVAC equipment, power distribution units, transportation equipment, agricultural machinery, construction equipment panels, instrument panels, audio and communication equipment, test equipment, and general OEM electrical control systems.
